▲ Basket made of advanced alloy materialwhich ensures the original shape of the gallstone to be removed.
▲ Personalized designso as keep the stone seized more comfortable and more highly efficient.
▲ As laser welding is used,the connection is reliable.

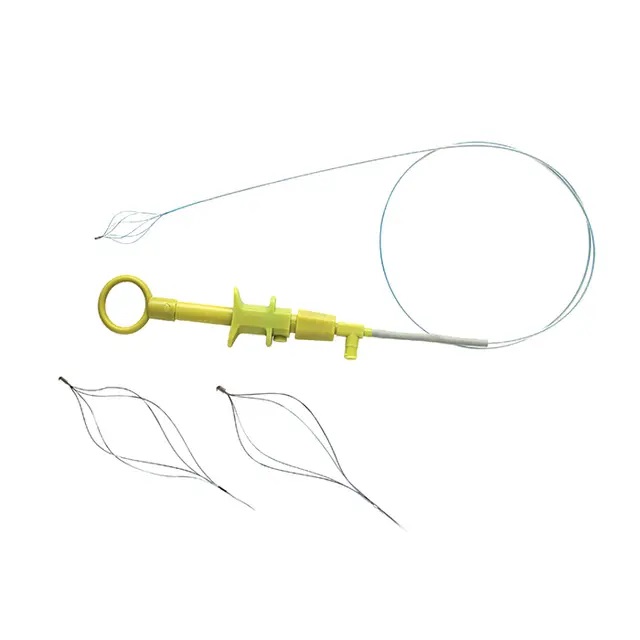

Disposable Stone Extraction Basket ( Stone Extraction Basket ) is used for removal of gallstone within the bile duct or the foreign body in the upper or lower digestive tract. Precision Medical is leading manufacturer & supplier & factory in china. ( Disposable Stone Extraction Basket ) Stone Extraction Basket is of high quality at a competitive price and supports ODM/OEM,We are strength source manufacturer.
| Model specification | Basket width（mm）±3 | Basket length（mm）±5 | Sheath diameter（mm）± 0. 3 | Effective length（mm） ± 100 |
| PHRC-204CHD-Y | 20 | 40 | 2.4 | 1950 |
| PMRC-204CHD-W | ||||
| PNRC-204CHL-Y | ||||
| PNRC-204CHL-W | ||||
| PNRC-306CHD-Y | 30 | 60 | ||
| PNRC-306ChD-W | ||||
| PNRC-306ChL-Y | ||||
| PNRC-306ChL-W |
| Insert part Maximum width | Deviation | Working length L | Deviation | Smallest net basket Opening B | Deviation | Net basket Effective length | Deviation | Mesh basket wire Quantity |
| 1.0、1.4、1.8、 2.1、2.4、2.6 | -0.2 | 800, 1200, 1600、1800、 2000、2200, 2400, 2600 | ±3% | 8、12、16、20、24、 28、30、36、 40 | -20% | 40、60 | -20% | 4、6、8 |
It is suitable for removing gallstones in the bile duct or foreign bodies in the upper and lower digestive tracts.
The method of using the NRC type stone retrieval basket is the same as that of the WL type stone retrieval basket.
1. Determine the location of the stone by radiography;
2. Put into the stone-removing basket through the endoscopic biopsy hole;
3. When the net basket reaches the stone, continue to push it so that the head of the net basket goes over the stone;
4. Push the push and pull handle to open the net basket; slowly pull back the net basket under X-ray monitoring;
5. When the maximum diameter of the net basket overlaps with the stone, pull back the push-pull handle to tighten the net basket and then take out the stone. Once the stone is trapped, there is resistance to the retraction of the handle, and the net basket is seen in an oval shape around the stone on the X-ray. If the stones are difficult to retrieve, you must repeatedly enter and retreat into the basket and take them patiently;
6. After confirming that the stones are removed, slowly pull the basket back to the end of the endoscope, and then slowly exit with the endoscope.
7. If the stones are too big to be taken out, crush the stones first and then use the stone-removing basket to take the stones.
The Disposable Stone Extraction Basket is used to grasp the stones, polyps after removal of polyps or foreign bodies under endoscope.
The Disposable Stone Extraction Basket has rotatable handle, it can make the basket a 360°rotation, which effectively captures small stones and crushed stones.
Medical-use stainless steel tightens the basket well, which makes it uneasy to fall off after taking.
Ergonomic design, Comfortable operation.
1. Q: Are you disposable stone basket manufacturer or trading company?
A: precision medical is disposable stone basket manufacturer
2. Q: who are we?
A: Precision Medical are based in Jiangsu, China, start from 2021,sell to Domestic Market(60.00%),Africa(10.00%),Western Europe(10.00%),North America(10.00%),Southeast Asia(5.00%),Eastern Europe(5.00%). There are total about 301-500 people in our office.
3. Q: What is the delivery time?
A: 7 days for Storage.
4. Q:Can you print our logo on the products？
A:Yes
5. Q: What’s your warranty and after service policy?
A:3 Years
6. Q: how can we guarantee quality?
A：Always a pre-production sample before mass production;
Always final Inspection before shipment;
7. Q:what can you buy from us?
A：Medical equipment,Medical consumables,Skin care products
8. Q：what services can we provide?
A： Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese
