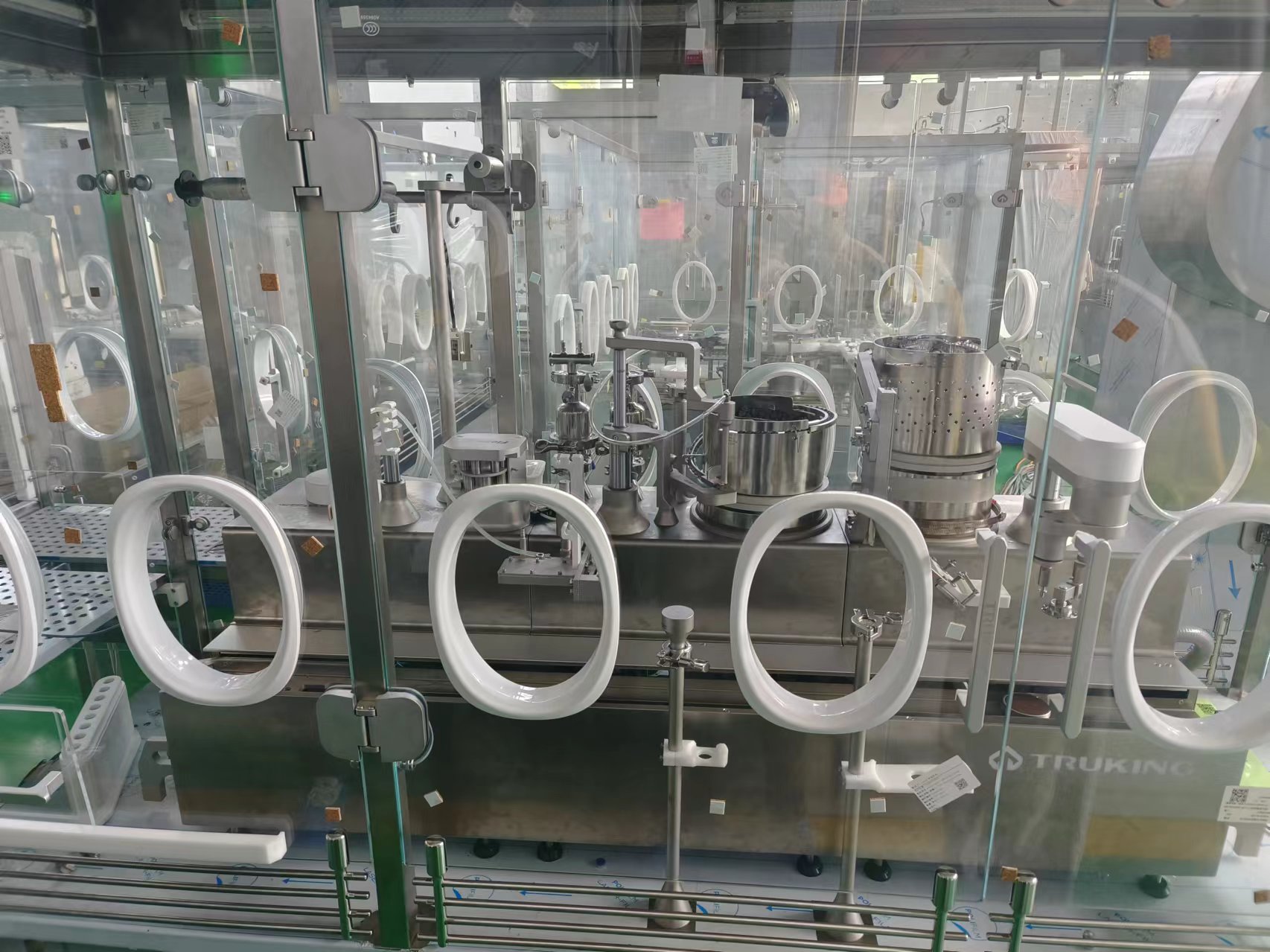

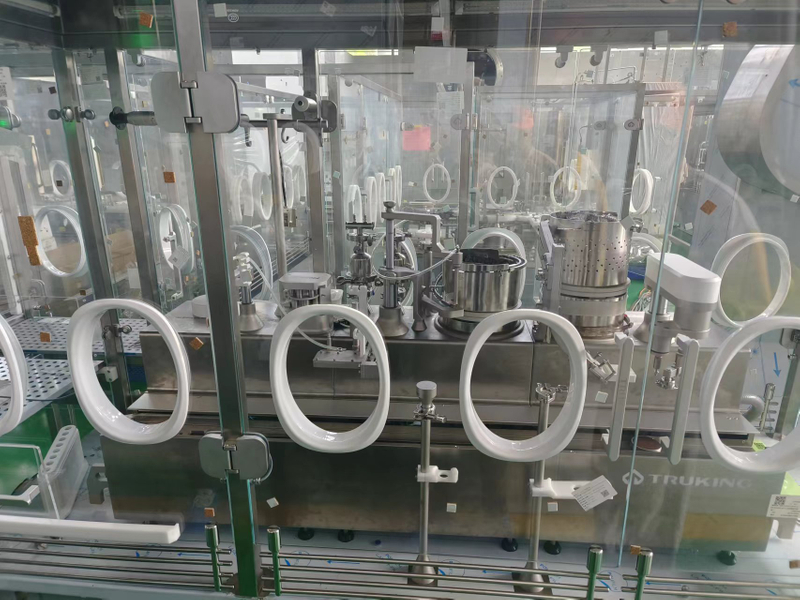

T-TOP filling machine is developed for pre-clinical experiments during drug research and development, applicable for both Phase I and II. Except for manual loading and unloading, the machine automatically fills and stoppers, greatly reducing labor requirement. The machine is compatible with syringes and cartridges. Filling module is optional with peristaltic pump to better cater drug features.
Overall Size: Inside isolator 1000mm×500mm×1000mm （Filling + Stoppering)
Weight: 300kg
Compatible: Syringes：0.5-20ml, Cartridges：1-3ml
Max capacity: 60 pcs/h (@3ml cartridges, relevant to operator proficiency)
Filling Accuracy: ±2.5% @ 0.5ml~1ml filling volume; ±1.5% @ 1ml~2ml filling volume; ±1% @2ml above filling volume
Stoppering rate: ≥99.9% (relevant to containers quality)
Breakage: ≤0.01％
Main Power: AC220V/50Hz single phase three wire control power: 24V DC
CCA: φ8mm；5m³/h (0.6MPa-0.8MPa)
Vacuum: Vacuum consumption: above 20m³/h, Degree: ＞99kPa, adjustable according to drug features
Portable Tablet
NETSCADA software
PLC
Closed Loop STEPDRIVE
Vacuum Stoppering Components
Converying Components
