Laser imaging High quality image
Energy saving Intelligent and efficient
Light chamber Flexible and multi-use

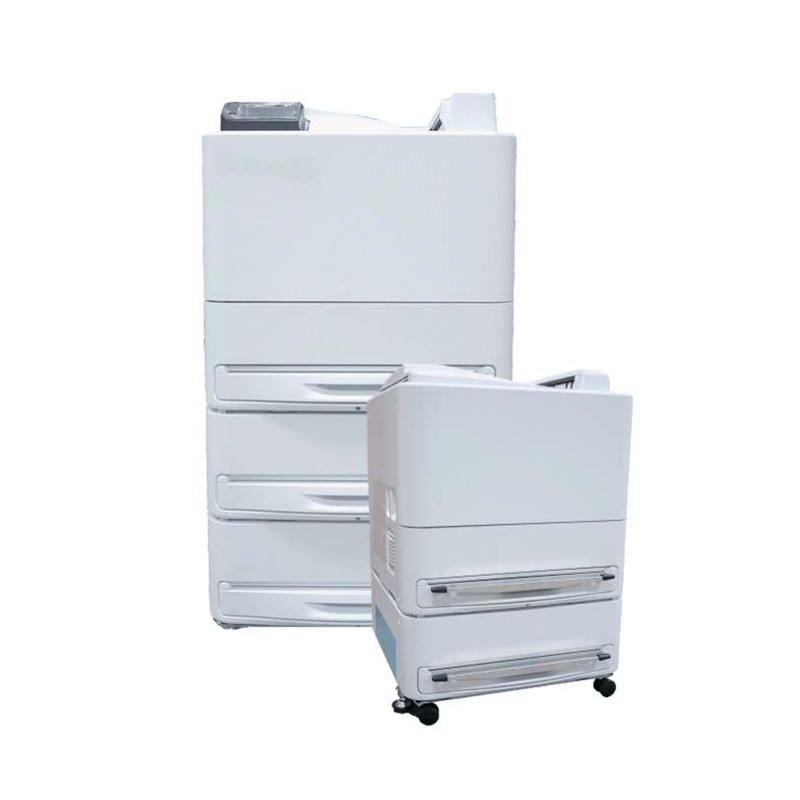

| Product Info | SM8000 basic collocation & specification | ||
| Film trays | 3 | Density correction | Auto |
| Imaging mode | Laser | Power supply spec | AC220V；6A；50HZ；Phase/AC220V;6A;50HZ;SP |
| Processing speed | Maximum 160 per hour | About 610mm*630mm*1425mm | |
| Applicable film | Smart Health Medical dry laser film | Weight | About 135KG |
Film size | 20×25cm (8×10in) 26×36cm (10×14in) 35×35cm (14×14in) 25×30cm (10×12in) 35×43cm (14×17in) 28×35cm (11×14in) | Pixel size Gray scale | 50μm 14 bit |
| Environmental condition | TEMP.15C° -30C° RH.15%-70%（no-condensation） | Maximum density | 4.0 Available for mammary gland printing |
| Product Info | SM6000 basic collocation & specification | ||
| Film trays | 2 | Environmental condition | TEMP.15C° -30C° RH.15%-70%（no-condensation） |
| Imaging mode | Laser | Density correction | Auto |
| Processing speed | Maximum 100 per hour | AC220V;6A;50HZ;SP | |
| Applicable film | Smart Health Medical dry laser film | Size | About 610mm*630mm*893mm |
Film size | 20×25cm (8×10in) 26×36cm (10×14in) 25×30cm (10×12in) 35×43cm (14×17in) 28×35cm (11×14in) 26×36cm (10×14in) | Weight | About 104KG |
| Highest resolution | 508 dpi | ||
