√ Light chamber easy to operate and use
√ Professional manufacturer with high definition and less fog
√ Reliable quality the priority choice of diagnostic image output.

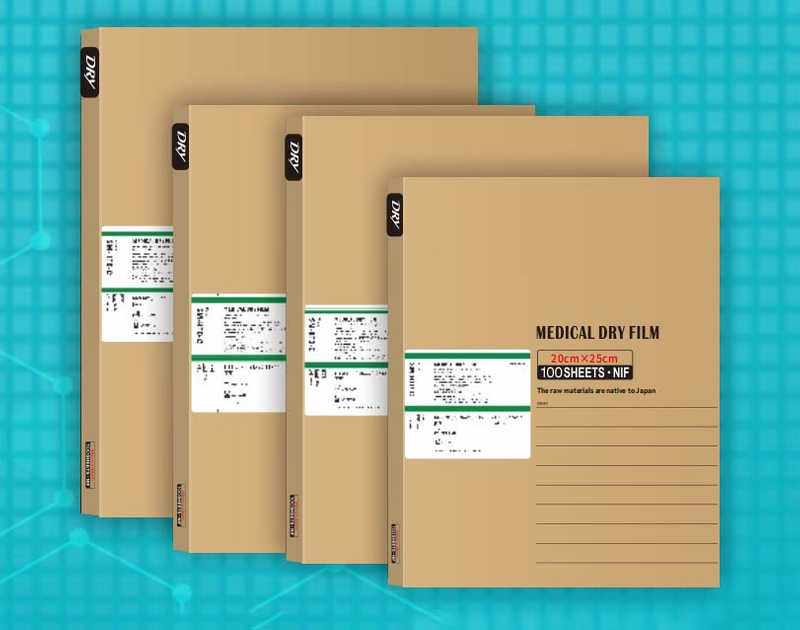

| ProductInfo | Medical Dry Film SM-HTO-C |
| Product performance & Main structure composition | It is composed of polyester (PET) sheet base, heat sensitive layer and protective layer |
| Scope of application | Used for recording medical images (CT, MRI, CR, DR, etc.) as the basis of diagnosis |
Specification | 20cm×25cm (8×10in) 100 sheets / box 25cm×30cm (10×12in) 100 sheets / box 28cm×35cm (11×14in) 100 sheets / box 35cm×43cm (14×17in) 100 sheets / box |
| Instructions | This product is suitable for medical dry printer produced by Smart Health Biotech(Guangxi) Co.,Ltd |
| ProductInfo | Medical Dry Printer DP‒X1 |
| Imaging mode | Thermal |
| Matching film and size | Yestar Smart Medical Dry Film 35cm×43cm(14×17in) 28cm×35cm(11×14in) 25cm×30cm(10×12in) 20cm×25cm(8×10in） |
| Packing method | Light chamber |
| Standard components | One host (including two cassettes) |
| Printing speed | Maximum 90 sheets/hour |
| Image memory | 1GB |
| Density correction | Automatic correction |
| Input channel | DICOM network input channel X1 |
| Product size | 532×590×532mm（max） |
| Weight | About 46kg |
| Operating environment temp | 15~30℃ |
| Operating environment humidity | 40%~70% RH (at 15℃) to 15%~70% RH (at 30 ℃) (no condensation) |
